NanoString Spatial Transcriptomics and Proteomics Services

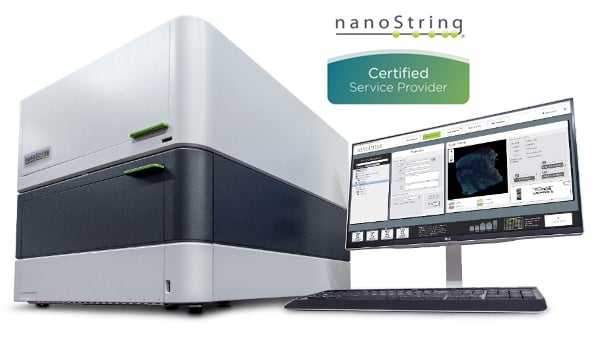

GeoMx® DSP: A Flexible & Scalable Platform for Spatial Biology

Efficiently address tissue diversity and intricate micro-environments using the GeoMx Digital Spatial Profiler (DSP), the premier spatial multiomic platform designed for both FFPE and fresh frozen tissue analysis. Unique in its field, the GeoMx facilitates non-destructive RNA and protein expression profiling from specific tissue sections and cell groups, all through an automated, scalable workflow compatible with conventional histology staining processes.

Profile the Whole Transcriptome and 570+ Proteins from Intact Tissue

Explore the complete transcriptome and over 570 protein targets individually or in tandem, utilizing a range of sample inputs including whole tissue sections, tissue microarrays (TMAs), or organoids. Choose GeoMx DSP as your trusted platform in spatial biology for unveiling biomarkers and conducting hypothesis testing.

Empower Your Research with Biology-Driven Profiling

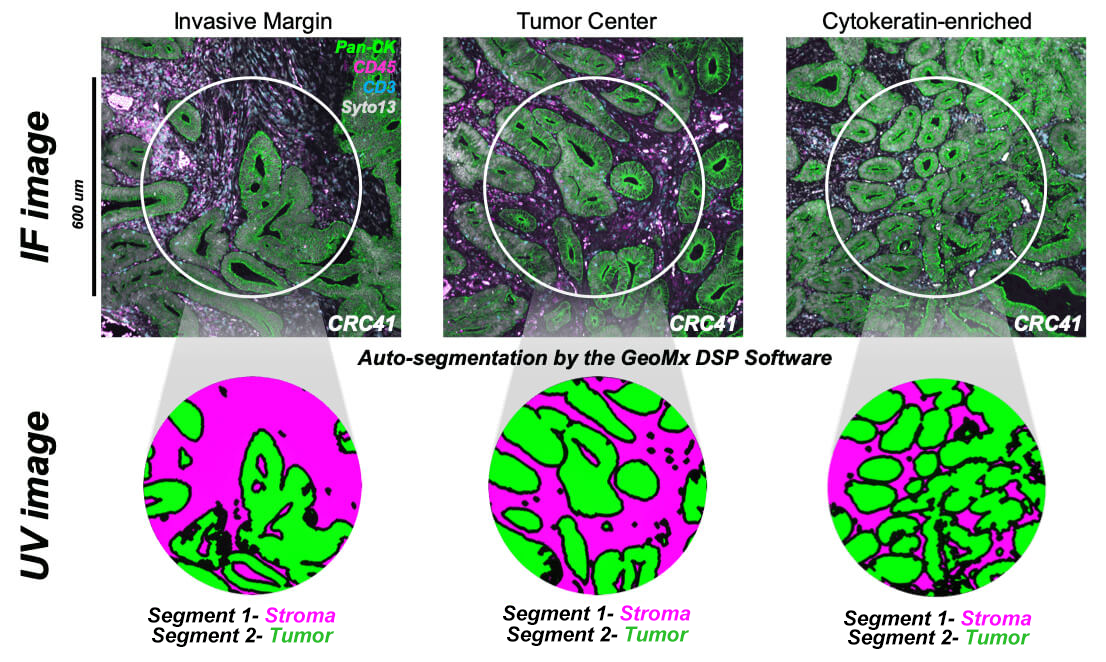

With our system, the tissue becomes your compass, guiding you to select crucial tissue microenvironments and cell types. Utilize fluorescent staining patterns to precisely segment and profile specific areas. Our adaptable region of interest (ROI) strategies, rooted in tissue morphology, ensure accurate profiling of your chosen compartments or cell groups. Throughout this process, our dedicated spatial multiomics team is on hand, collaborating closely with you to guide ROI selection and address any queries.

GeoMx RNA and Protein Assays Overview

RNA Assays

Human/Mouse Whole Transcriptome Atlas (WTA): Facilitates extensive spatial biology profiling, covering all protein-coding genes.
TCR Profiling Add-On: Can be added to the Whole Transcriptome or Cancer Transcriptome Atlases to analyze different T Cell Receptor (TCR) expressions spatially.

Cancer Transcriptome Atlas: Aimed at detailed tumor biology profiling, enabling the analysis of over 1,800 genes from distinct regions in a single tissue section.

Spatial RNA Panel for Immuno-oncology: Focuses on targeted profiling of the tumor and its surroundings, allowing for the analysis of up to 96 RNA targets in a single tissue section using GeoMx DSP.

GeoMx IO Proteome Atlas

Dive into the next level of immuno-oncology research with the GeoMx IO Proteome Atlas (IPA), backed by Abcam's IHC-validated human antibodies. This leading spatial proteomics panel excels in analyzing both FFPE and fresh frozen tissue sections, opening new avenues for biomarker discovery in translational research.

The GeoMx IPA stands out by offering:

Non-destructive profiling of over 570 proteins in various tissue areas.
Superior data richness compared to traditional IHC or IF assays.
Compatibility with standard histology workflows.

Take advantage of this technology to gain a deeper understanding of vital tissue microenvironments and cell types, enhancing your insights into immune responses to cancer and potential therapeutic strategies in immunology, oncology, and other research fields.

Download Details

Protein Assays (nCounter Readout)

Immuno-Oncology and Immunology: Features a core of 18 targets (17 for mouse) for wide-ranging cell profiling, with the flexibility to add up to 60 additional targets plus 10 custom selections for tailored research.

Neuroscience: Comes with a core of 20 targets (19 for mouse) for broad cell profiling, and offers the ability to add up to 60 more targets plus 10 custom selections for specific research need

Reports and Data Analysis

The GeoMx® Data Analysis Suite (DSPDA) offers an integrated platform that seamlessly links quantitative data with its spatial context, ensuring an efficient experimental workflow. Our team of Bioinformatics experts not only reviews the QC data from each project but also furnishes a comprehensive overview via a Standard Report. Should you require a deeper dive into your data, we're available for personalized consultations to cater to your specific analytical needs.
